PGS-1-35-SD
Sdec Diesel • Silent SERIES

SDEC 4DW92-42D

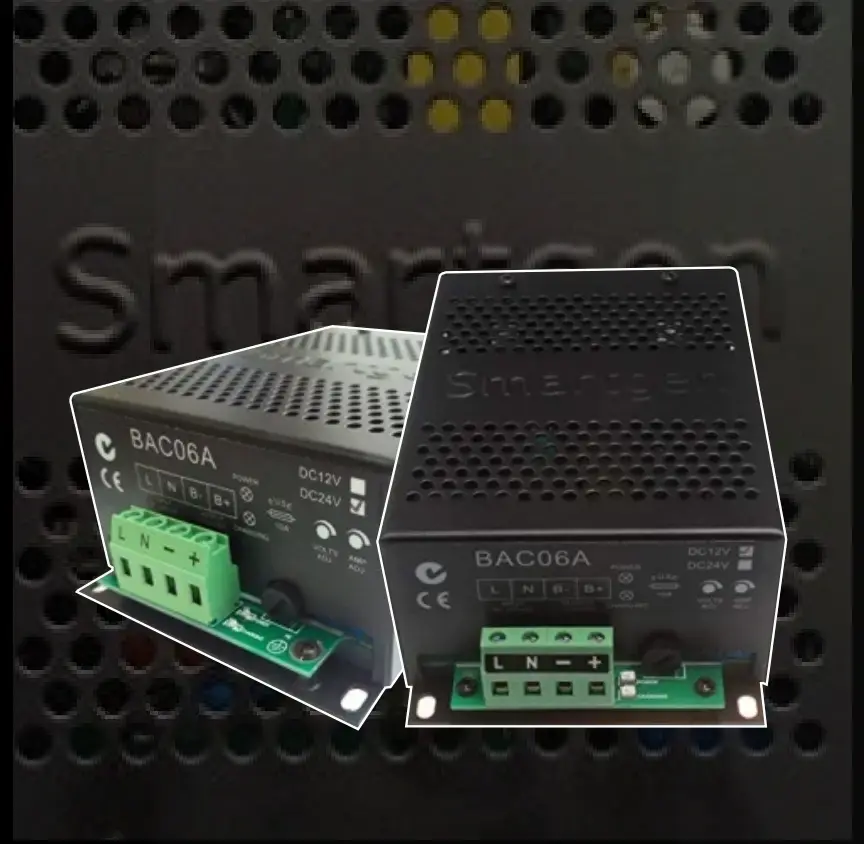

35 KVA diesel generator set with SDEC engine featuring SMARTGEN digital control, automatic battery charger, and sound-proof steel enclosure. Reliable power solution with comprehensive engine monitoring and protection.

Standby Power

28 Kw/ 35 Kva

Prime Power

25 Kw/ 31 Kva

Model

PGS-1-35-SD

Fuel Type

Diesel

Operation Conditions
Altitude1500m
Temp40°C
Derating1% per 100m above 1500m
Request Quote
Call Now Email Us

Generator Set Data

Standby Power

28 Kw/ 35 Kva

Prime Power

25 Kw/ 31 Kva

Speed

1800rpm

Frequency

60Hz

Starting Voltage

24v

Fuel Capacity

Good for 8 Hours

Connection Mode

Single Phase

Type

Silent

Voltage Options

208v/120v 220v/127v 240v/139v 380v/220v 440v/254v 480v/277v

Dimensions & Weight

L 230 x W 95 x H 125 cm / 870 Kgs

Engine Specifications

cylinders

4 inline

aspiration

Natural aspiration

cycle

4

combustion

Direct Injection

cooling

Water Cooled

bore Stroke

90×100

compression

17:1

displacement

2.54 L

Alternator Specifications

technology

Stamford Technology

insulation

Class H

excitation

Self-Excitation or PMG

protection

Ip23
